CXDI-720C Wireless
CXDI-720C Wireless
Canon’s next generation wireless flat panel detector line-up takes you to new heights of possibilities in Digital Radiography.
Key Features
Features

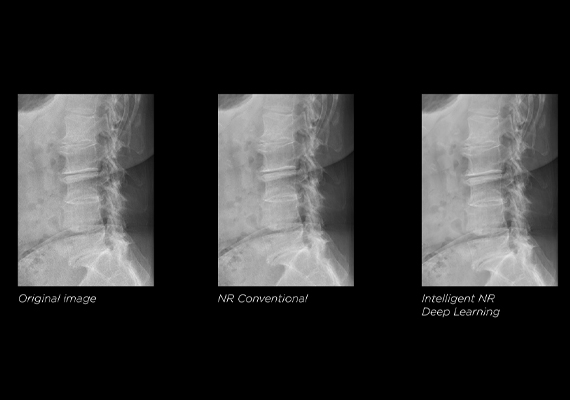

Intelligent Noise Reduction
Optional software feature based on Deep Learning significantly improves image quality, assists with diagnosis, and possible dose benefit.

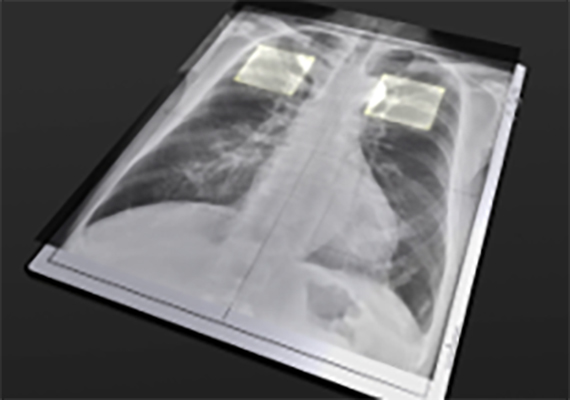

Built-in AEC Assistance
Optional feature enables the optimization of X-ray dose without external AEC sensor, ideal for free positioning such as bedside examinations.

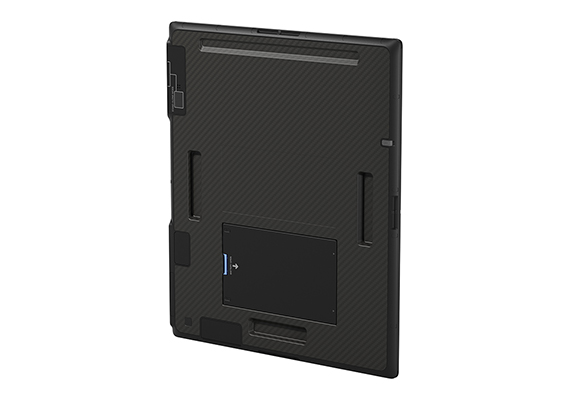

User Friendly Design
Shape designed for easier positioning and round corners are comfort for patient and user. Comfortable grips to safely hold and easy to carry the product.
Specifications
Specifications*1
|
Purpose |
General Radiography |
|
Scintillator |
Csl (Cesium Iodide) |
|
Weight (incl. battery) |
2.3 kg |
|
Effective Imaging Area |
35 x 43 cm |
|
External Dimensions |
38 x 46 cm |
|
Image Matrix Size |
2,800 x 3,408 pixels |
|
Pixel Size |
125 μm |
|
Resolution |
4.0 lp/mm |
|
DQE |
Typical 74% (0 lp/mm) / 67% (0.5 lp/mm)*2 |
|
Grey Scale |
A/D: 16 bit |
|
Preview Image Time |
1 sec.*3 |
|
Cycle Time |
4 sec.*3 |
|
Dust- and Waterproof |
IP57*4 |
|
Battery Performance |
|
|
Standard Synchronisation mode |
Approx. 2,075 images @ 4 sec. cycle,
|
|
Non-Generator Connection mode |
Approx. 1,975 images @ 4 sec. cycle,
|
|
Charging Performance |
Detector charging in detector stand: |
|
Wireless Channel/Band |
2.4 GHz, 5 GHz (W52, W53, W56, W58)*6 |
- Specifications subject to change.
- 0 lp/mm is extrapolated value IEC62220-1-1 2015 (RQA5).
- Dependent on acquisition mode.
- Based on tests conducted by an independent institution. Certification does not guarantee against failure or damage. Dust and water resistance may be compromised by substantial impacts (dropping, crushing, etc.).
- At an ambient temperature of 25°C.
- W53, W56 supports only in module receiver mode.
