How do I Direct Print? (PictBridge)
Solution
Connect the camera to the printer and print directly from the camera.
CAUTION
- Screens or menu listings may differ depending on the camera model being used.
- These instructions show how to print one image on one sheet of paper as an example.

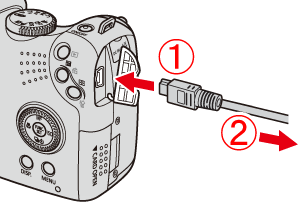

1. Connect the camera to the printer.
Connect the [interface cable] to the camera's [DIGITAL terminal].
Connect the other end of the cable to printer's USB terminal.2. Turn the printer's power on.

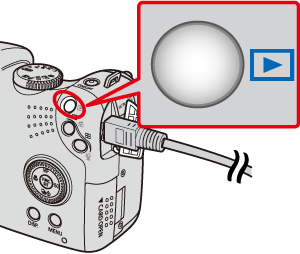

3. Press the < Playback > (
) button to turn on the camera.
) button to turn on the camera.
4. Operate the < directional buttons > left or right to display an image to print on the LCD monitor.

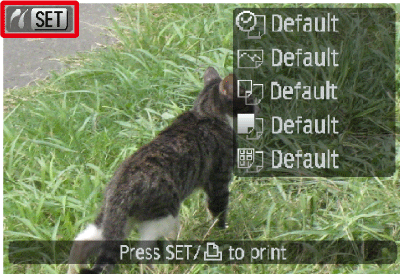

Make sure that the [SET] icon is displayed in the upper left corner of the LCD monitor, and then press the camera's < FUNC./SET > (
) button.
) button.5. The screen for specifying the print settings appears.
Operate the < directional buttons > left or right to select [Date] for adding the date. Operate the < directional buttons > left or right to specify the number of prints.
Select [Paper Settings], and then press the camera's < FUNC./SET > () button.6. The screen for setting the paper size appears.
Operate the < directional buttons > up or down to select the paper size, then press the camera's < FUNC./SET > () button. In the image shown above, the [9 x 13 cm] size is selected.
) button. In the image shown above, the [9 x 13 cm] size is selected.7. The screen for setting the paper type appears.
Operate the < directional buttons > up or down to select the paper type, and then press the camera's < FUNC./SET > () button. In the image shown above, [Photo] is selected.
) button. In the image shown above, [Photo] is selected.8. The layout (border) settings screen appears.
Operate the < directional buttons > up or down to select the layout type, and then press the camera's < FUNC./SET > () button. In the image shown above, [Bordered] is selected.
) button. In the image shown above, [Bordered] is selected.9. Return to the print setting screen.
Make sure that the settings are correct. Select [Print] and press the camera's < FUNC./SET > () button to start printing.
