CR-N500

Canon 4K Video System

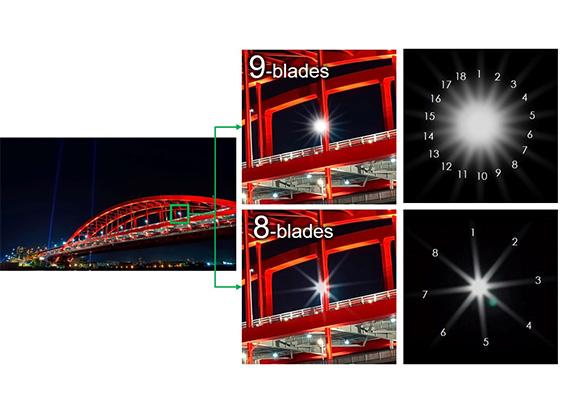

• Using 9-bladed Iris Diaphragm creates attractive natural bokeh effects that appear like a circle enticing soft look
• The 4K lens offers high 15x optical zoom and wide angle to cover a vast range of shooting needs
• Adopted type 1.0 CMOS sensor that supports high-resolution 4K UHD

Note: This camera does not support outdoor use.

​​​​​​​

Four-Axis Correction Mechanism

• This enables vertical roll correction, horizontal roll correction (two-axis), and up-down/left-right correction (two-axis) maintaining a proportional image output at any angle, closest possible
• Dual Pixel CMOS AF, accurate auto focus assists shooting with high-speed, high precision image-plane phase-difference auto focus technology

Multiple Wireless Operation

• Selection via Infrared (IR) with “Remote Controller WL-N01 (included)” or “Windows Surface Tablet”, running on IEEE802.11 b/g/n signal with Remote Camera Controller Application installed
• Both Wi-Fi and infrared remote controller can switch to "standby mode" when the camera is not shooting and can return from "standby mode"
• To ease user convenience, a Tally Lamp will indicate the camera status on hardware level

​​​​​​​

IP Multi-Stream

• Supports NDI (Network Device Interface) protocol that is well-established in the field of video production and broadcasting as the supporting RTP (Real-time Transport Protocol)
• Distribute a total of three video streams: main, sub 1 and sub 2 the same time on Parallel Workflow
• HDMI/SDI video output maximum of 30 fps or less, it is also possible to distribute two video streams, 4K H.264 and 360P H.264, at the same time

Multiple Terminal Interface

• Extensive connection and expandability with various devices used in the field of video production and broadcasting
• Terminal choices for Input and Output various from RS-422 (RJ45), 3G-SDI OUT (BNC), HDMI OUT, GEN-LOCK (BNC), INPUT1/INPUT2, LAN and MIC
