Name of components and information displayed on the screen (PowerShot ELPH 110 HS / IXUS 125 HS)
Solution

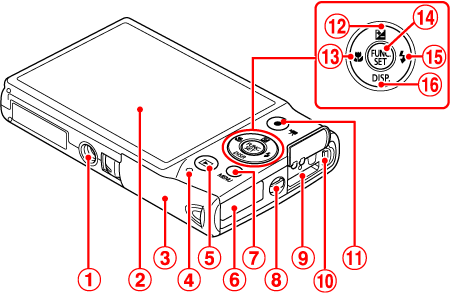

 | Lens |  | Mode switch |
 | Speaker |  | Microphone |
 | Zoom lever Shooting:  (telephoto) /  (wide angle)Playback:  (magnify) /  (index) |  | Flash |
 | Shutter button |  | Lamp |
 | Power button | ||
| Tripod socket | | HDMITM terminal |
| Screen (LCD monitor) |  | AV OUT (Audio/video output) / DIGITAL terminal |
| Memory card/battery cover |  | Movie button |
| Indicator |  |  (Exposure compensation) / Up button |
|  (Playback) button |  |  (Macro) / Left button |
| DC coupler cable port |  | FUNC./SET button |
|  button |  |  (Flash) / Right button |
| Strap mount |  |  (Display) / Down button |

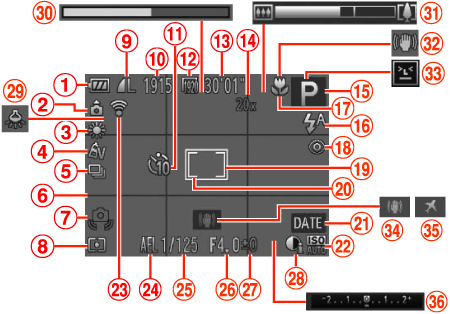

| Battery level |  | AF frame |
| Camera orientation* |  | Spot AE point frame |
| White balance |  | Date stamp |
| My Colors |  | ISO speed |
| Drive mode |  | Eye-Fi connection status |
| Grid lines |  | AE lock, FE lock |
| Camera shake warning |  | Shutter speed |
| Metering method |  | Aperture value |
| Compression (image quality) / Resolution |  | Exposure compensation level |
| Recordable shots |  | i-Contrast |
| Self-timer |  | Mercury lamp correction |
| Movie quality |  | Super slow motion movie (shooting time) |
| Remaining time |  | Zoom bar |
| Digital zoom magnification, Digital tele-converter |  | Image stabilization icon |
| Shooting mode, Scene icon |  | Blink detection |
| Focusing range, AF lock |  | Image stabilization |
 | Flash mode |  | Time zone |
 | Red-eye correction |  | Exposure compensation bar |
*
: Regular orientation,
: Held vertically
: Regular orientation, : Held verticallyThe camera detects the shooting orientation and adjusts settings for optimal shots.
Orientation is also detected during playback, and in either orientation, the camera automatically rotates images as needed.
However, the orientation may not be detected correctly when the camera is pointed straight up or down.

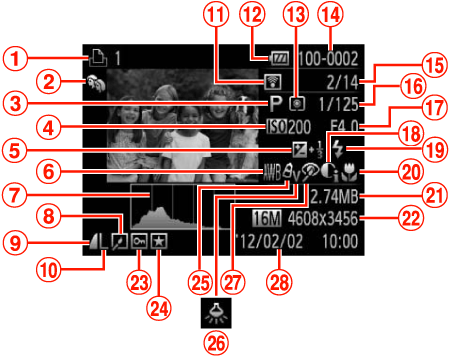

| Movies, High-speed burst, Print list | | Current image no. / Total no. of images |
| My Category | | Shutter speed (still images), Image quality / Frame rate (movies) |
| Shooting mode | | Aperture value |
| ISO speed, Playback speed | | i-Contrast |
| Exposure compensation level | | Flash |
| White balance | | Focusing range |
| Histogram | | File size |
| Group playback, Image editing | | Still images: Resolution Movies: Movie length |
| Compression ratio (image quality) | | Protection |
| Resolution, MOV (movies) | | Favorite |
| Transferred via Eye-Fi | | My Colors |
| Battery level | | Mercury lamp correction |
| Metering method | | Red-eye correction |
| Folder number - File number | | Shooting date/time |
