Name of components and information displayed on the screen (PowerShot SX280 HS)

Solution

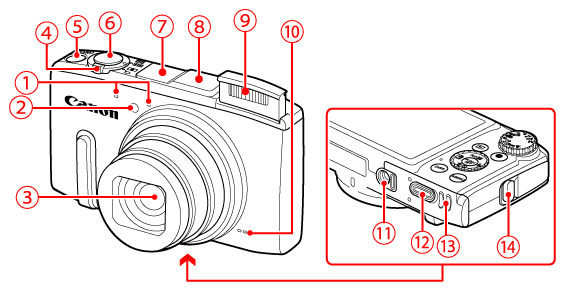

Camera
PowerShot SX280 HS


MicrophoneGPS antenna
LampFlash
LensSpeaker
Zoom lever
Shooting: <(telephoto)> / < (wide angle)>
Playback: <(magnify)> / <(index)>
Tripod socket
Power buttonDC coupler terminal cover
Shutter buttonMemory card/battery cover
Wi-Fi antenna areaStrap mount



Screen (LCD monitor)< (Display)> button
AV OUT (Audio/video output) / DIGITAL terminalMovie button
HDMITM terminal< (Exposure compensation)> / < (Wi-Fi)> / Up button
Mode dial< (Flash)> / Right button
< (Playback)> buttonFUNC./SET button
Control dial< (Self-timer)> / < (Single image erase)> / Down button
< (Macro)> / < (Manual focus)> / Left button<> button
Indicator

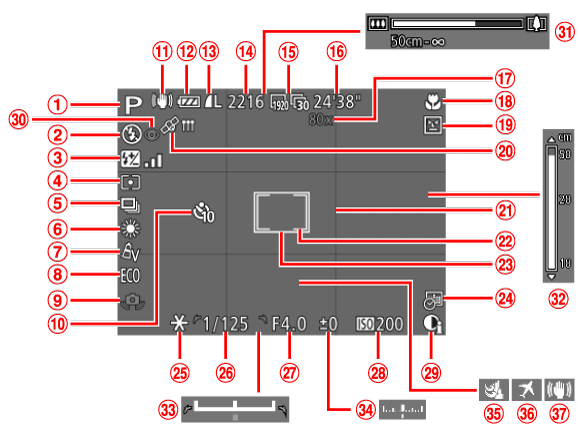

Shooting (Information Display)


Shooting mode, Scene iconGPS reception status
Flash modeGrid lines
Flash exposure compensation / Flash output levelSpot AE point frame
Metering methodAF frame
Drive modeDate stamp
White balanceAE lock, FE lock
My ColorsShutter speed
Eco modeAperture value
Camera shake warningISO speed
Self-timeri-Contrast
IS mode iconRed-eye correction
Battery levelZoom bar
Still image compression, ResolutionMF indicator
Recordable shotsExposure shift bar
Movie qualityExposure compensation level, Exposure level
Remaining timeWind filter
Digital zoom magnification, Digital tele-converterTime zone
Focusing range, AF lockImage stabilization
Blink detection

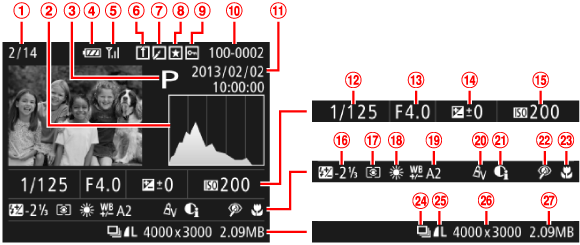

Playback (Detailed Information Display)


Current image no. / Total no. of imagesISO speed, Playback speed
HistogramFlash exposure compensation / Flash output level
Shooting modeMetering method
Battery levelWhite balance
Wi-Fi signal strengthWhite balance correction
Images have been saved on a computerMy Colors
Image editingi-Contrast
FavoritesRed-eye correction
ProtectionFocusing range
Folder number - File numberMovies, Sports, Highspeed burst HQ
Shooting date/timeStill image compression, Resolution, Playback time (movies)
Shutter speed (still images), Image quality / Frame rate (movies)Resolution
Aperture value, Movie qualityFile size
Exposure compensation level, Exposure shift level
