    Name of components and information displayed on the screen (PowerShot S120)

    22-Aug-2013
    8201910800

    Solution

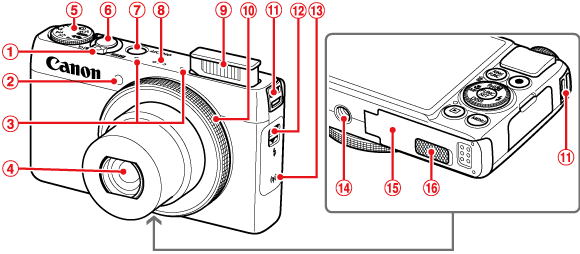

    Front Panel


    Zoom lever
    Shooting: < (telephoto)> / < (wide angle)>
    Playback: < (magnify)> / < (index)>    		Flash
    LampControl ring
    MicrophoneStrap mount
    Lens< (Flash up)> switch
    Mode dialWi-Fi antenna area
    Shutter buttonTripod socket
    Power buttonMemory card/battery cover
    SpeakerDC coupler terminal cover

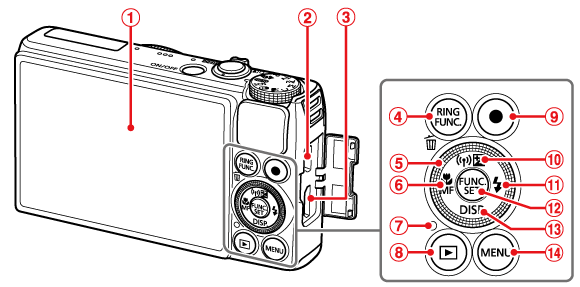

    Back Panel


    Screen (LCD monitor)*< (Playback)> button
    DIGITAL terminalMovie button
    HDMITM terminal< (Exposure compensation)> / < (Wi-Fi)> / Up button
    < (Ring function selector)> / button< (Flash)> / Right button
    Control dialFUNC./SET button
    < (Macro)> / < (Manual focus)> / Left button< (Display)> / Down button
    Indicator<> button
    *Gestures may not be detected as easily if you apply a screen protector. In this case, increase the sensitivity of the touch-screen panel

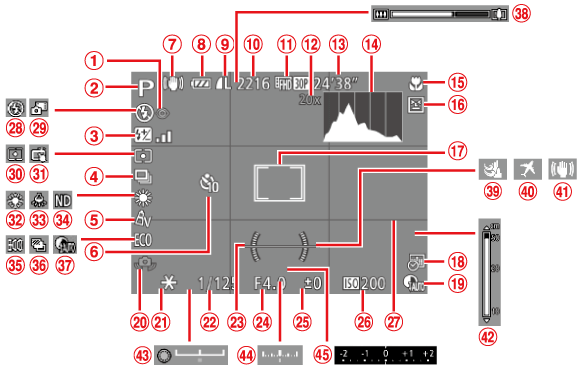

    Shooting (Information Display)


    Red-eye correctionElectronic level
    Shooting mode, Scene iconAperture value
    Flash exposure compensation / Flash output levelExposure compensation level
    Drive modeISO speed
    My ColorsGrid lines
    Self-timerFlash mode
    IS mode iconHybrid Auto mode
    Battery levelMetering method
    Compression (image quality) / Resolution, RAWTouch Shutter
    Recordable shotsWhite balance
    Movie resolutionMercury lamp correction
    Digital zoom magnification, Digital tele-converterND filter
    Remaining timeEco mode
    HistogramAEB shooting, Focus bracketing
    Focusing range, AF lockShadow correction
    Blink detectionZoom bar
    AF frame, Spot AE point frameWind filter
    Date stampTime zone
    DR correctionImage stabilization
    Camera shake warningMF indicator
    AE lock, FE lockExposure shift bar
    Shutter speedExposure level


    		Exposure compensation bar

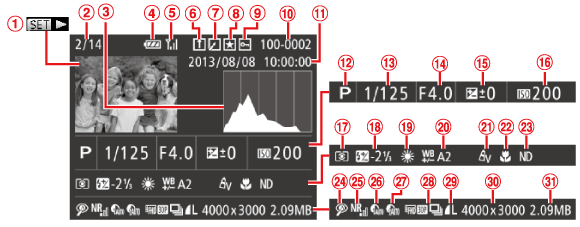

    Playback (Detailed Information Display)


    MoviesMetering method
    Current image no. / Total no. of imagesFlash exposure compensation / Flash output level
    HistogramWhite balance
    Battery levelWhite balance correction, Mercury lamp correction
    Wi-Fi signal strengthMy Colors
    Image SyncFocusing range
    Image editingND filter
    FavoritesRed-eye correction
    ProtectionHigh ISO NR
    Folder number - File numberDR correction
    Shooting date/timeShadow correction
    Shooting modeGroup playback, Image quality / Frame rate (movies)
    Shutter speedCompression (image quality) / Resolution, Digest movies, RAW, MP4 (movies)
    Aperture valueStill images: Resolution / Movies: Playback time
    Exposure compensation level, Exposure shift levelFile size
    ISO speed, Playback speed
